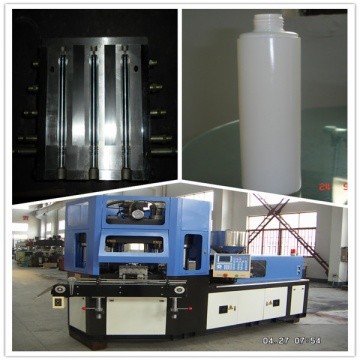

1L plastic bottle making machine AM35

Aman Machinery Co.,Ltd

1L plastic bottle making machine AM35

Place of Origin : China

Brand Name : Aman

Model Number : AM35

Certification : CE

MOQ : 1

Packaging Details : Standard Export Packing

Delivery Time : From 10-30 Working Days

Payment Terms : LC, TT, Etc.

Contact Now

Plastic machinery AMAN Injection blow molding machine

Main Technological parameters

Name

Data

Name

Data

screw stem diameter

40mm

Stripping distance

120mm

Length/diameter ratio of screw stem (L/D)

20

Mould size L ×W

400x200mm

Max. theoretical injection capacity

158cm3

Min. mould thickness

180mm

Max. theoretical injection speed ratio

60cm3/sec.

Hydraulic system pressure

14MPa

Max. distance of screw

165mm

Lifting height of rotary table

60mm

Plasticizing capacity

12g/s

Cooling consuming volume

3M3/h

Injection clamping molding

300kn

Product scale

0.005-0.6L

Opening distance of injection mould

120mm

Product height

≤175mm

Blow molding

30kn

Product diameter

≤100mm

1L plastic bottle making machine AM35

1.Usage:

The machine adopts injection blow molding technology and once-molding technology. It is a bottle blower of making hollow bottles. It can produce high grade bottle whose bottleneck has high precision.

2.Application:

It is widely used manufacturing package bottles in pharmacy,food,cosmetics,chemical and other trades.

1L plastic bottle making machine AM351L plastic bottle making machine AM351L plastic bottle making machine AM351L plastic bottle making machine AM35

1L plastic bottle making machine AM351L plastic bottle making machine AM351L plastic bottle making machine AM351L plastic bottle making machine AM35

3.Composition:

The machine is composed of injection section, injection-blowing molding section, rotary lifting section, stripping section, hydraulic control section, electric control section, blow control section and others. An air compressor and two mould temperature controllers must be bought by consumer or are equipped according to the contract.

1L plastic bottle making machine AM351L plastic bottle making machine AM351L plastic bottle making machine AM351L plastic bottle making machine AM35

4.Packing : Export packing

1L plastic bottle making machine AM35

5.Characteristics:

(1)It adopts a thermal flow system and high-pressure injection molding

(2)Adopts single-screw stem horizontal injection method

(3Adjust rings can be fixed in mechanical, hydraulic, aircontrol, electric and others to ensure the technological demands of different products.

(4)Strong applicability to raw materials

(5)Low-mould protection, proportion pressure, proportion flowing adjustment and other functions

1L plastic bottle making machine AM35
