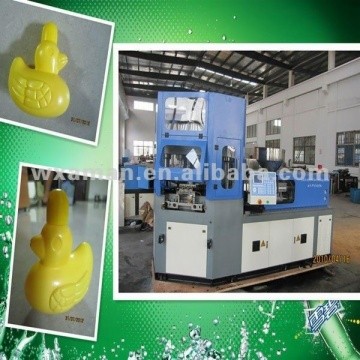

Plastic machinery AMAN Injection blow molding machine
Main Technological parameters
| Name | Data | Name | Data |
| screw stem diameter | 40mm | Stripping distance | 120mm |
| Length/diameter ratio of screw stem (L/D) | 20 | Mould size L ×W | 400x200mm |
| Max. theoretical injection capacity | 158cm3 | Min. mould thickness | 180mm |
| Max. theoretical injection speed ratio | 60cm3/sec. | Hydraulic system pressure | 14MPa |
| Max. distance of screw | 165mm | Lifting height of rotary table | 60mm |
| Plasticizing capacity | 12g/s | Cooling consuming volume | 3M3/h |
| Injection clamping molding | 300kn | Product scale | 0.005-0.6L |
| Opening distance of injection mould | 120mm | Product height | ≤175mm |
| Blow molding | 30kn | Product diameter | ≤100mm |
1.Usage:
The machine adopts injection blow molding technology and once-molding technology. It is a bottle blower of making hollow bottles. It can produce high grade bottle whose bottleneck has high precision.
2.Application:
It is widely used manufacturing package bottles in pharmacy,food,cosmetics,chemical and other trades.
3.Composition:
The machine is composed of injection section, injection-blowing molding section, rotary lifting section, stripping section, hydraulic control section, electric control section, blow control section and others. An air compressor and two mould temperature controllers must be bought by consumer or are equipped according to the contract.
4.Packing : Export packing
5.Characteristics:
(1)It adopts a thermal flow system and high-pressure injection molding
(2)Adopts single-screw stem horizontal injection method
(3Adjust rings can be fixed in mechanical, hydraulic, aircontrol, electric and others to ensure the technological demands of different products.
(4)Strong applicability to raw materials
(5)Low-mould protection, proportion pressure, proportion flowing adjustment and other functions
